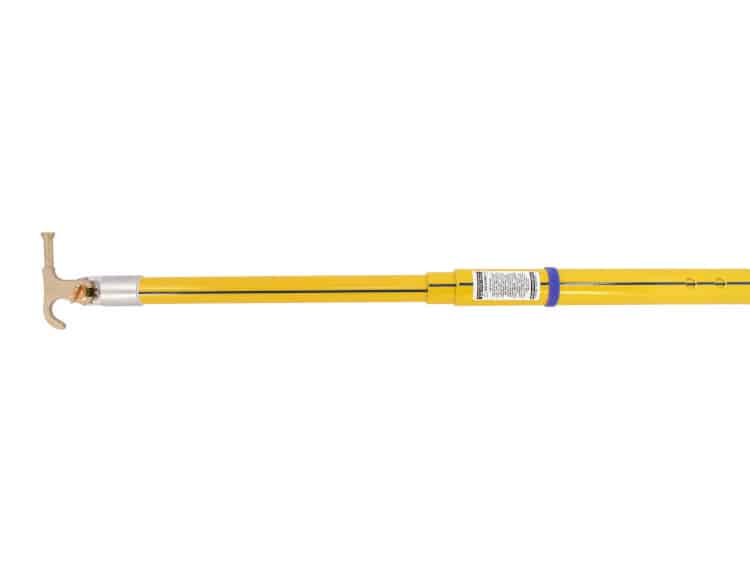

BLUE STRIPE® Heavy Duty Substation Sticks
Item numbers: USTS-H02-DH-BOOT, USTS-H02-SE-BOOT, USTS-H02-SH-BOOT, USTS-H02-QC-BOOT, USTS-H03-DH-BOOT, USTS-H03-SE-BOOT, USTS-H03-SH-BOOT, USTS-H03-QC-BOOT
Our Substation Sticks are robust, compact and built for heavy duty substation applications.
Built for Heavy Duty Substation Applications
BLUE STRIPE® Substation Sticks are robust, compact and built for heavy duty substation applications. All Heavy Duty Substation sticks now come standard with a robust Rubber Boot.
Key features include:
- Dual Button Design for Added Strength
- High Performance Closed Cell Foam Filled Inner Section
- Compact Telescopic Design
- BLUE STRIPE® Alignment Feature
How To Order
| DESCRIPTION | CLOSED | OPERATING LENGTHS | DIAMETER | WEIGHT | BAG | |
|---|---|---|---|---|---|---|
| USTS-H02-DH-BOOT | 2 SECTION SUBSTATION STICK W/ DISCONNECT HEAD & BOOT | 7' 6" | 13', 12', 11', 10' | INNER: 1.25" OUTER: 1.5" | 6 lbs | USSB-010 |
| USTS-H02-SE-BOOT | 2 SECTION SUBSTATION STICK W/ SPLINE END, HOT STICK PROBE & BOOT | 7' 6" | 13', 12', 11', 10' | INNER: 1.25" OUTER: 1.5" | 6 lbs | |
| USTS-H02-SH-BOOT | 2 SECTION SUBSTATION STICK W/ SWITCH HEAD & BOOT | 7' 6" | 13', 12', 11', 10' | INNER: 1.25" OUTER: 1.5" | 6 lbs | |
| USTS-H02-QC-BOOT | 2 SECTION SUBSTATION STICK W/ QUICK CONNECT HEX HEAD & BOOT | 7' 6" | 13', 12', 11', 10' | INNER: 1.25" OUTER: 1.5" | 6 lbs | |
| USTS-H03-DH-BOOT | 3 SECTION SUBSTATION STICK W/ DISCONNECT HEAD & BOOT | 7' 8" | 18' 6", 17' 6", 16' 6", 15', 6", 13' 3", 12' 3", 11' 3", 10' 3" | INNER: 1.25" MIDDLE: 1.5" OUTER: 1.75" | 9 lbs | USSB-010 |
| USTS-H03-SE-BOOT | 3 SECTION SUBSTATION STICK W/ SPLINE END, HOT STICK PROBE & BOOT | 7' 8" | 18' 6", 17' 6", 16' 6", 15', 6", 13' 3", 12' 3", 11' 3", 10' 3" | INNER: 1.25" MIDDLE: 1.5" OUTER: 1.75" | 9 lbs | |
| USTS-H03-SH-BOOT | 3 SECTION SUBSTATION STICK W/ SWITCH HEAD & BOOT | 7' 8" | 18' 6", 17' 6", 16' 6", 15', 6", 13' 3", 12' 3", 11' 3", 10' 3" | INNER: 1.25" MIDDLE: 1.5" OUTER: 1.75" | 9 lbs | |
| USTS-H03-QC-BOOT | 3 SECTION SUBSTATION STICK W/ QUICK CONNECT HEX HEAD & BOOT | 7' 8" | 18' 6", 17' 6", 16' 6", 15', 6", 13' 3", 12' 3", 11' 3", 10' 3" | INNER: 1.25" MIDDLE: 1.5" OUTER: 1.75" | 9 lb |
