BREAK-SAFE®

Load Break & Pick-up Tool

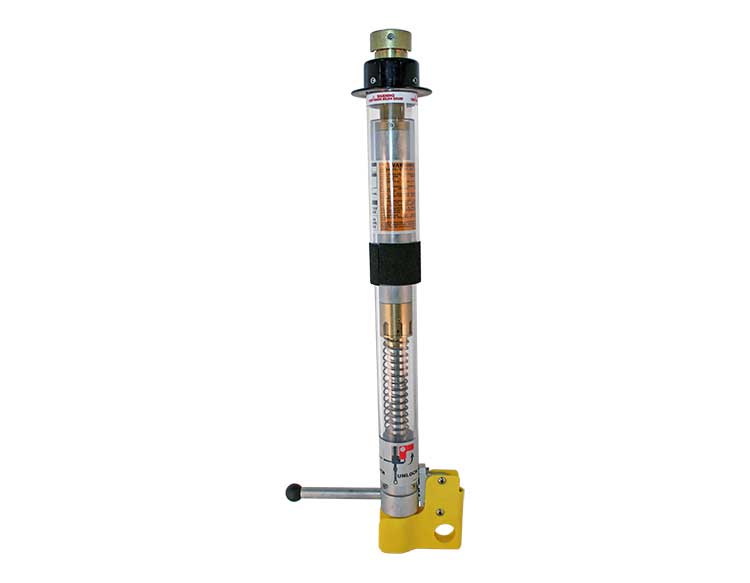

The patented BREAK-SAFE® is designed to add a functional and portable switch to a mechanical jumper. The BREAK-SAFE® has three operating functions:

• Load Break
• Continuous Current Duty
• Load Pick-Up

In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.

The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill:

• 15 kV / 300 amp
• 27 kV / 300 amp
• 38 kV / 300 amp*
• 46 kV / 200 amp*

*38 kV / 300 amp and 46 kV / 200 amp models require product verification to order. Please complete the Product Verification Form in Downloads if you are ordering either of these models.

How To Order

Item Number	Description	System Voltage	Rating	Weight	Closed Length	Open Length
USBS-15-1-PS	15 kV WITH FLOATING HEAD	15 kV	300 AMP	7 lb 3 oz	24 in.	28 in.
USBS-15-2-PS	15 kV WITH DUCKBILL HEAD	15 kV	300 AMP	6 lb 3 oz	28 in.	32 in.
USBS-27-1-PS	27 kV WITH FLOATING HEAD	27 kV	300 AMP	7 lb 10 oz	28 in.	33.5 in.
USBS-27-2-PS	27 kV WITH DUCKBILL HEAD	27 kV	300 AMP	7 lb	32 in.	37.5 in.
USBS-38-1-PS	38 kV WITH FLOATING HEAD	38 kV	300 AMP	8 lb 6 oz	33 in.	41 in.
USBS-38-2-PS	38 kV WITH DUCKBILL HEAD	38 kV	300 AMP	7 lb 12 oz	37 in.	45 in.
USBS-46-1-PS	46 kV WITH FLOATING HEAD	46 kV	200 AMP	10 lb 3 oz	42.5 in.	53.5 in.
USBS-46-2-PS	46 kV WITH DUCKBILL HEAD	46 kV	200 AMP	9 lb 9 oz	46.5 in.	57.5 in.
CONDUCTOR SIZES (ALL)		#6 COPPER MIN. up to 954 ACSR (1.1 in. dia.) MAX.
DIAMETER (ALL)		2.5 in.

*LOAD BREAK, LOAD PICKUP and CONTINUOUS CURRENT DUTY PATENT NO. 9,478,374, 8,759,672, and 9,024,182

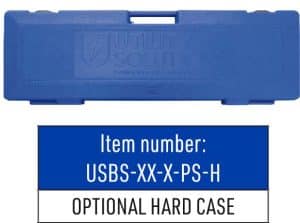

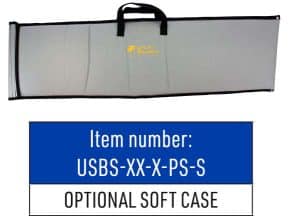

Options
