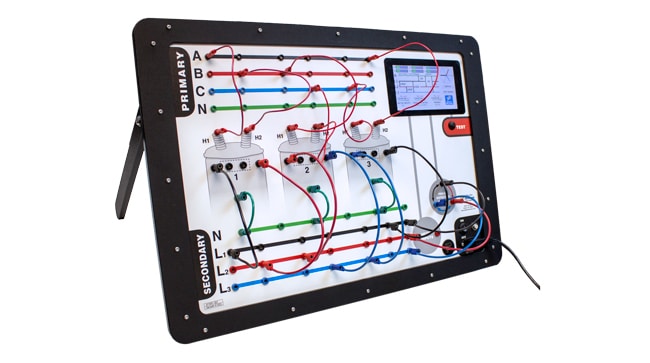

Load-Trainer™ II
Item numbers: XFMR-001, XFMR-001 Case
The Load-Trainer™ II Transformer Simulator is a portable 3-phase trainer. Train lineman in an immersive learning environment with color coded patch cords and a 7″ interactive touchscreen. Simulate Wye, Delta, Polarity, Phase Rotation and Phase Angles, Back-feeding, Multiple Secondary Voltages and more.
Transformer Simulator
The Load-Trainer™ II provides an immersive learning experience for transformer banking and 3 phase simulation. Real-time information is displayed when the ‘TEST’ button is pressed.
Demonstrate complex concepts in electrical distribution systems:
- Wye/Delta Configurations
- Open vs Closed Banks
- Multiple Secondary Voltage Options
- Troubleshooting Practice
- Transformer Polarity
- Phase Rotation
- Secondary Backfeed Hazards
- Floating Neutral Configurations
| MODEL | WIDTH | HEIGHT | DEPTH | WEIGHT |
|---|---|---|---|---|
| XFMR-001 | 27.5″ | 19″ | 3.5″ | 17 lb |
| XFMR-001 Case | 31" | 22" | 8.5" | 21 lb |
How To Order
| ITEM NUMBER | DESCRIPTION |
|---|---|
| XFMR-001-H | TRANSFORMER SIMULATOR WITH HARD CASE |
| XFMR-001-S | TRANSFORMER SIMULATOR WITH SOFT CASE |
| XFMR-001-LEADSET | TRANSFORMER SIMULATOR EXTRA SET OF COLOR CODED PATCH CORDS |
