Underground Grounds-Trainer™
Item numbers: GNDS-002, Case measurements

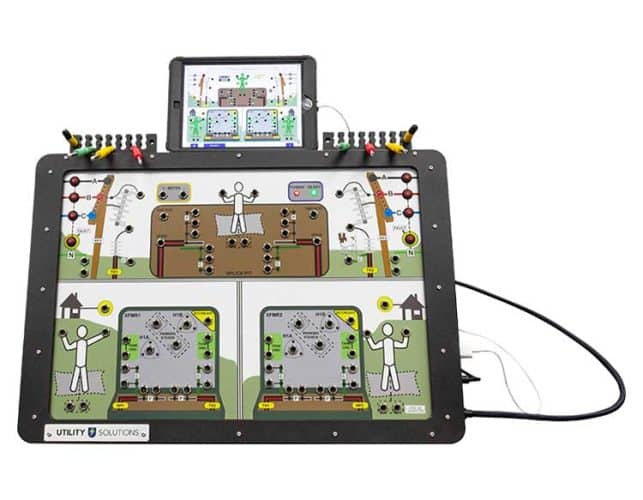

The Underground Grounds-Trainer™ is a portable personal protective grounding simulator designed specifically for Underground and Padmount grounding applications. The Underground Grounds-Trainer™ features our innovative PhaseLink™ platform to offer an immersive and hands-on learning environment for all knowledge levels.
Personal Protective Grounding Simulator
The Underground Grounds-Trainer™ uses unique technology to combine a physical wiring environment with computer-controlled and WiFi-enabled simulation software. In addition to installing jumpers, users can connect wirelessly to the unit to create and observe real-time results of concepts and field scenarios like never before.
The simulator also features interactive disconnect switches, source buttons, and an included 10.2″ iPad which wirelessly connects to the unit, allowing instructors ultimate freedom and flexibility.
Demonstrate complex concepts:
- Radial vs Loop Circuits
- Basic Switching and Phasing
- Neutral Currents & Total Isolation
- Ground Potential Rise
- Step & Touch Hazards
- Cable ID & Verification
Real world variables:
- PPG & Connection Quality
- URD Cable & Overhead Faults
- Soil Type & Temperature
- Secondary Backfeed Hazards
Configure multiple grounding styles and work methods:
- Radial, Open & Closed Loop Circuits
- Grounding Transformers & Riser
- Equipotential Zone Grounding (EPZ)
| MODEL | WIDTH | HEIGHT | DEPTH | WEIGHT |
|---|---|---|---|---|
| GNDS-002 | 27.5″ | 19″ | 3.5″ | 18 lb |
| Case measurements | 31" | 22" | 8.5" | 21 lb |
How To Order
| ITEM NUMBER | DESCRIPTION |
|---|---|
| GNDS-002-H | UNDERGROUND GROUNDS-TRAINER™ SIMULATOR WITH HARD CASE |
| GNDS-002-LEADSET | UNDERGROUND GROUNDS-TRAINER™ SET OF LEADS |
